Pay3 Javascript SDK

4min

Pay3 Javascript SDK provides a two-way communication with Pay3 webapp:

This can be integrated to the application using one of the following methods:

  1. NPM module @pay3/sdk
  2. OR Script tag of the application's html file https://pay3.money/pay3-sdk-pay/index.global.X.Y.Z.js

Pay3 webapp is a highly customisable. Following picture show high-level communication between the integrating App and Pay3.

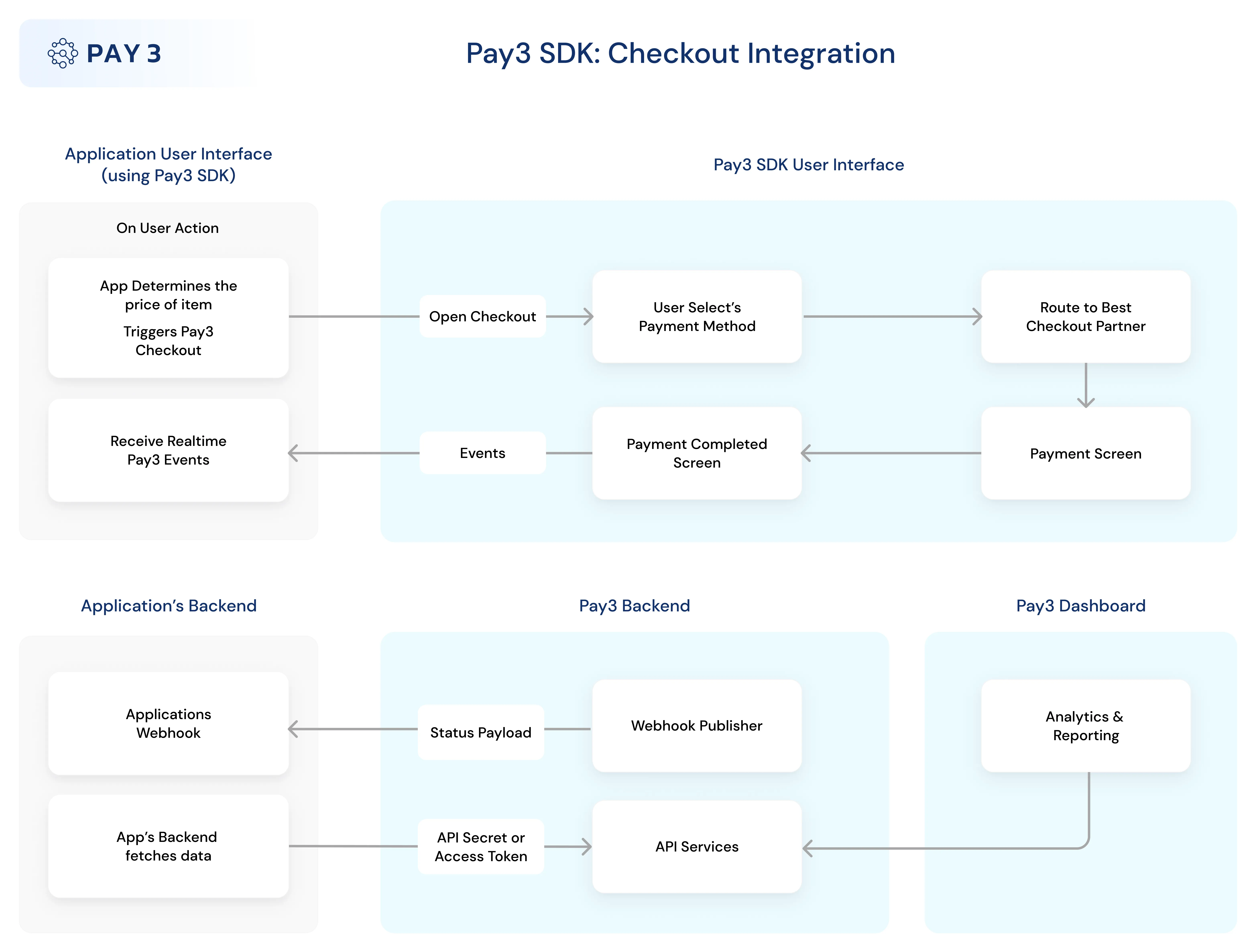

Checkout Integration

Checkout flow can be utilised by the applications to get users buy and pay using their preferred local currencies.

Integration Design

Document image

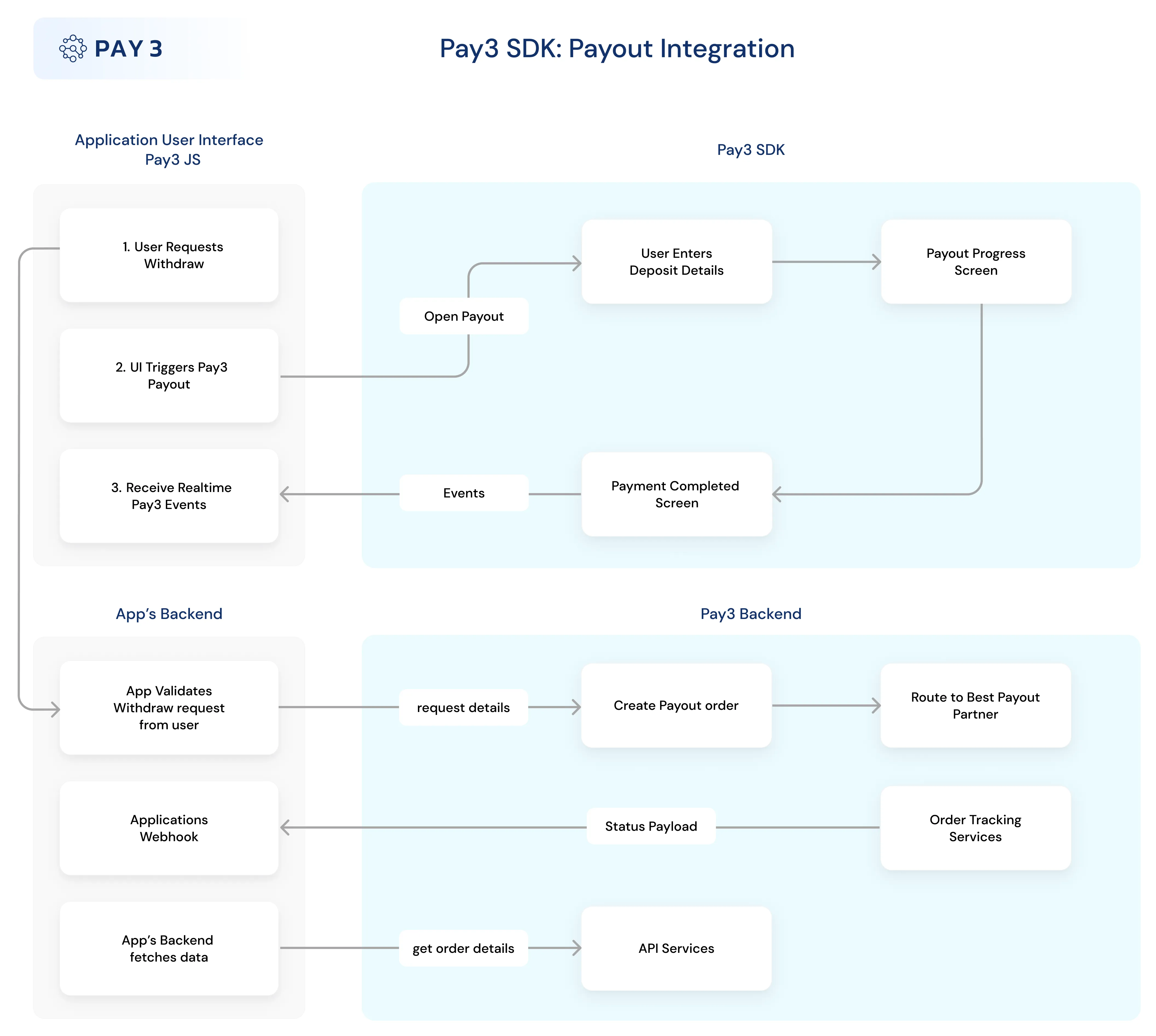

Payout Integration

Payout flow can be utilised by the application to allow users to withdraw funds from the application into their preferred payment instrument.

Integration Design

Document image

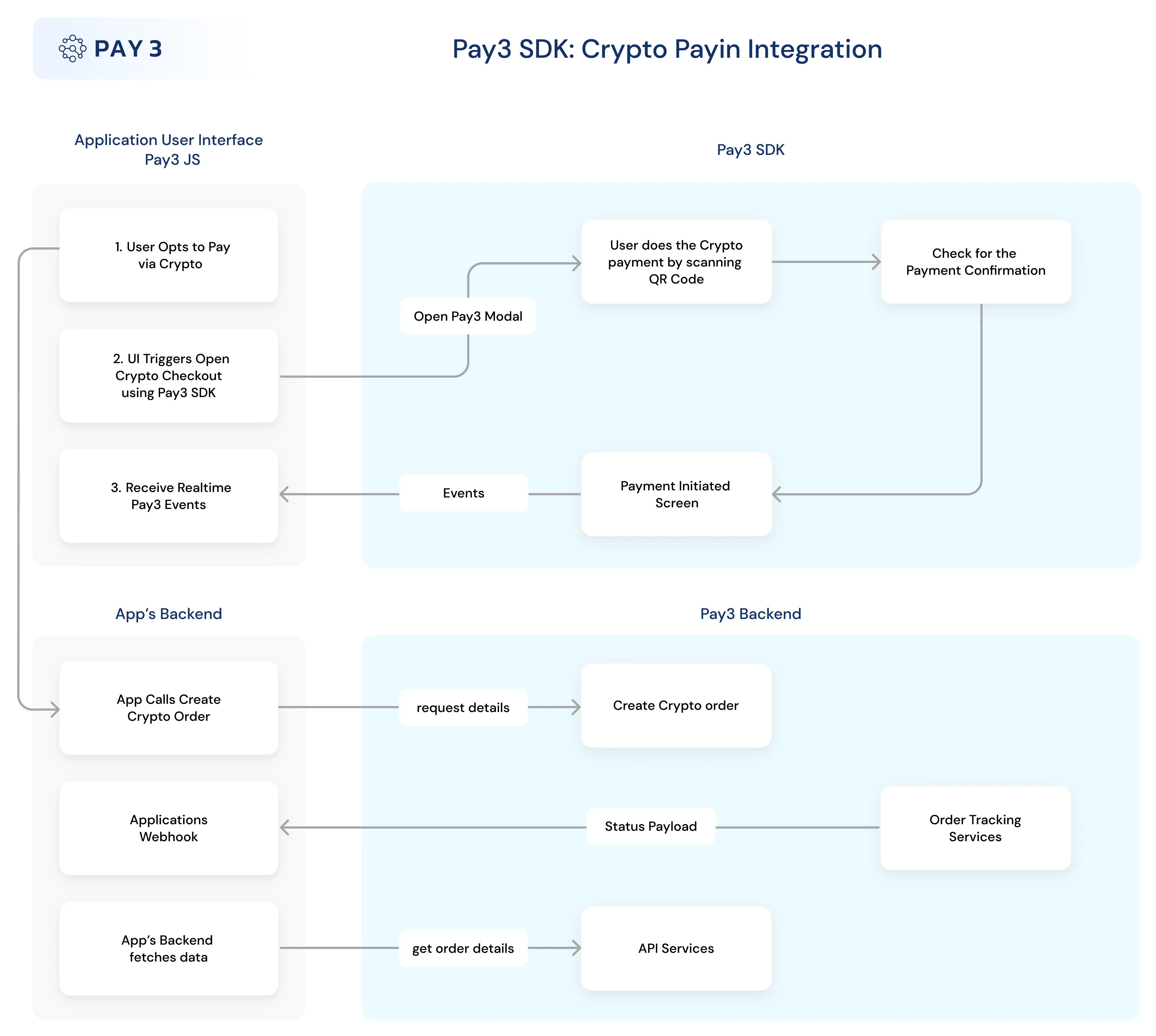

Crypto Payin Integration

Users can pay via Crypto for the product and services provided by the application. Following diagram shows the integration overview for Crypto payin.

Crypto Payin Integration Overview
Crypto Payin Integration Overview




Updated 28 Aug 2024
Doc contributor
Doc contributor
